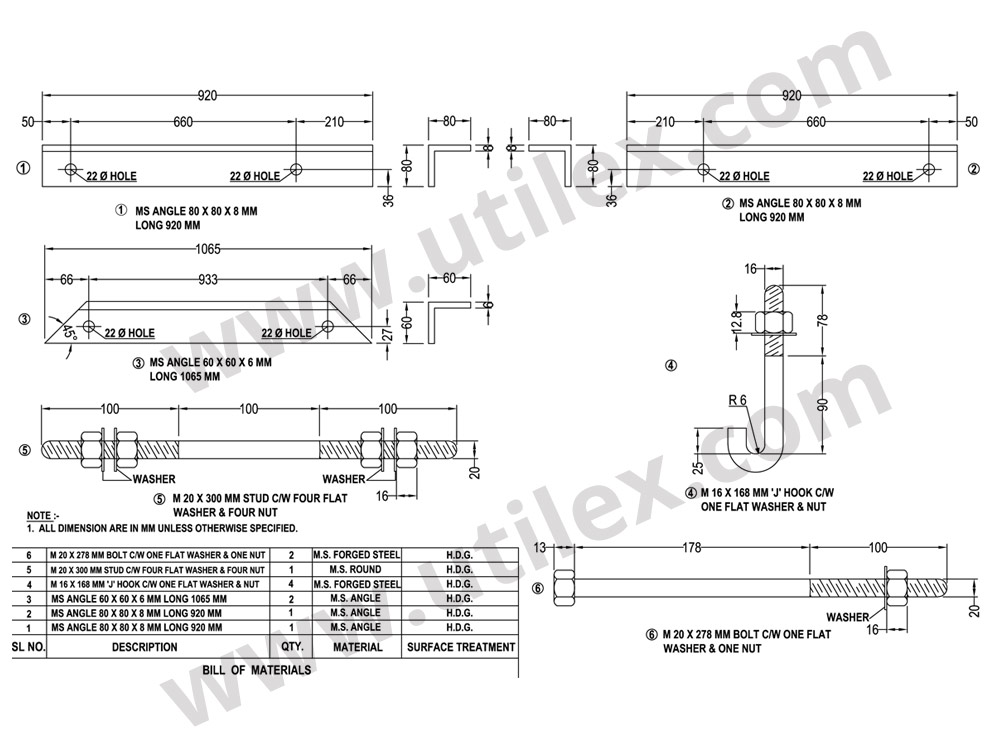

Sl. No. Desc. Qty. Material Surface Treatment
1 MS Angle 80 x 80 x 8 mm Long 920 mm 1 M.S. Angle H.D.G.
2 MS Angle 80 x 80 x 8 mm Long 920 mm 1 M.S. Angle H.D.G.
3 MS Angle 60 x 60 x 6 mm Long 1065 mm 2 M.S. Angle H.D.G.
4 M 16 x 168 mm ‘J’ Hook C/W One Flat Washer & Nut 4 M.S. Forged Steel H.D.G.
5 M 20 x 300 mm Stud C/W Four Flat Washer & Four Nut 1 M.S. Round H.D.G.
6 M 20 x 278 mm Bolt C/W One Flat Washer & One Nut 2 M.S. Forged Steel H.D.G.

Note :

  • All dimensions are in mm
